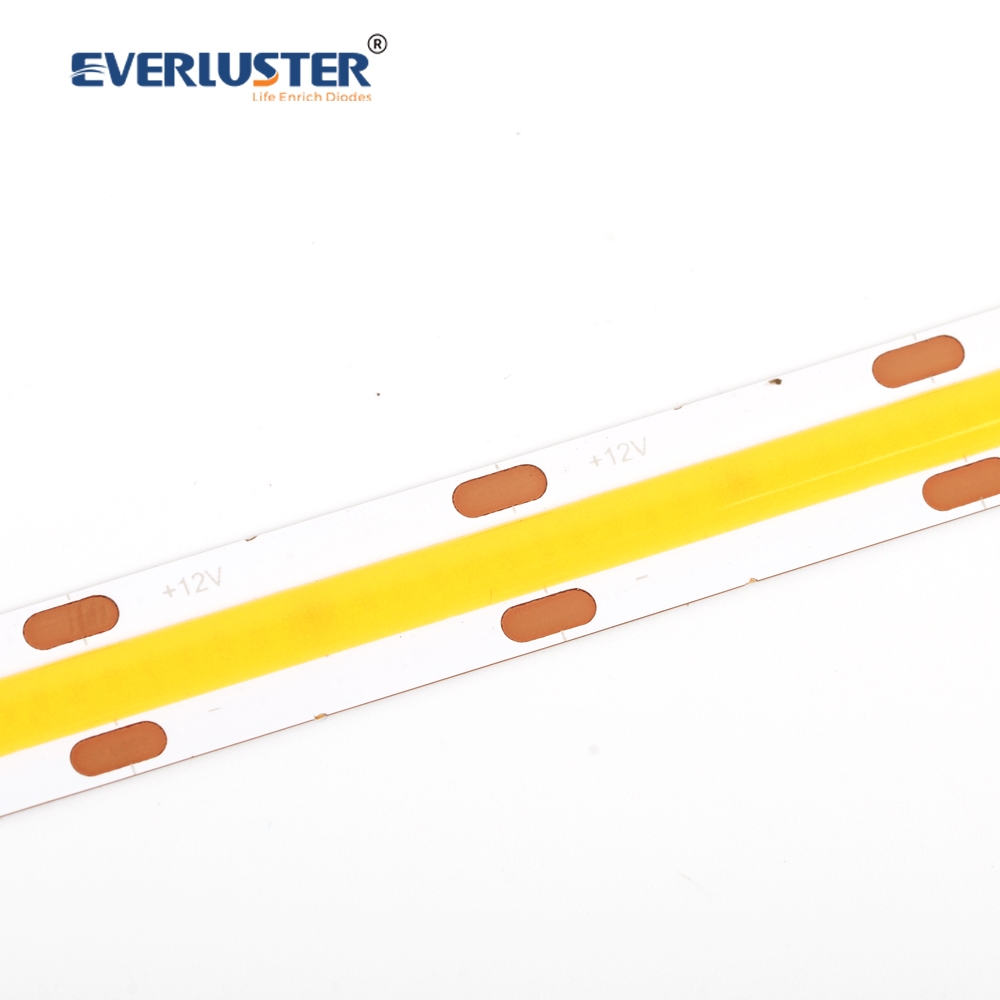

Luxury series -COB flexible LED strip 504chips/meter

Item.: VT-FOB-504-12VCW

Max. Power: 14watt/meter

Voltage: 12/24VDC

PCB: 2OZ

CRI: 85Ra

Protection: IP33/IP55/IP65/IP67

Dimension: 5000*10*1.8mm

Lumen: 100-120lm/watt

Inquiry

Parameter

Part No.: VT-FOB-504-12VCW
LED type: COB(Chip On Board)
Power consumption: 14Watt/Meter
LED Qty: 504chips/Meter
Voltage: 12/24volts(constant voltage)
CRI: 80/optional CRI 90
Cutting unit: 18mm
Colour temperature: 2700K/3000K/4000K/6000K
Lumilous flux: 1200lm
Bandwidth: 10mm
Protection class: IP20
Radiation Angle: 180°
Switchable/Dimmable: Yes
Size: 5000*10*1.8mm
Roll length: 5meters
Certification: Rohs(EN50581),CE-EMC(EN55015,EN61547,EN61000-3-2,61000-3-3),ERP(EN62722-1,EN62722-2-1)
Warranty: 3years
