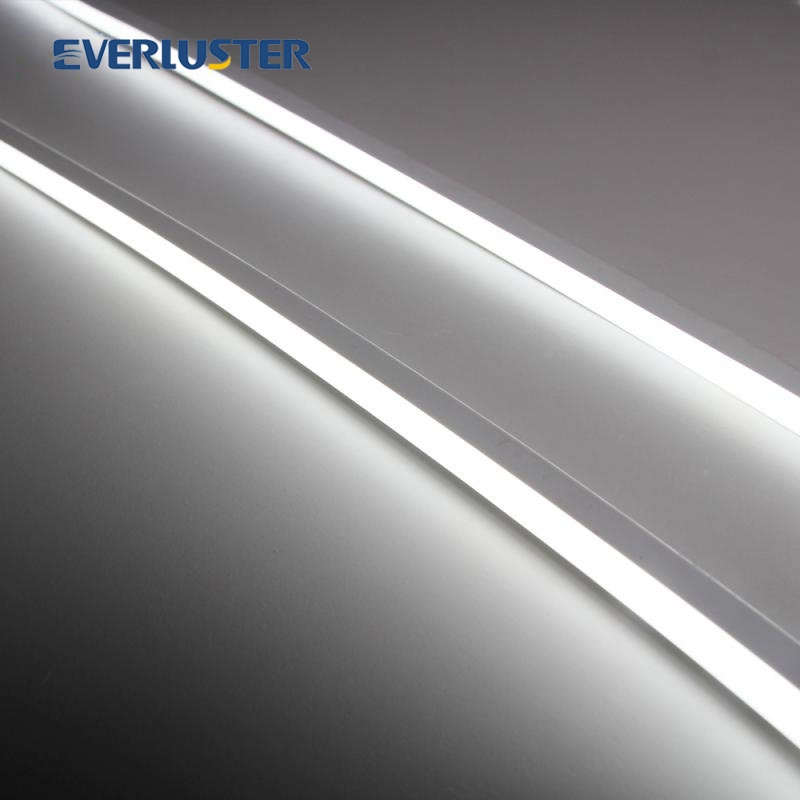

24V front view flexible led neon linear strip tube

Light data

● Flat lens that gives modern LEDs the classic glow of pinpoint neon lines.
● Available in Static White, Variable White and color changing RGB options.
● Small size, good for contour light.
● Waterproof and UV resistant.
● 2700K,3000K,4000K,6000K various colors available
● High color rendering index:>90Ra
● Best color consistency SDCM≤3.

Item	Top bend neon series	VT-N0810-120-12V	VT-N0810-120-24V
LIGHT DATA	Input voltage	12V DC	24V DC
	Power range	14 W/meter
	Luminous flux	770 lm/meter (@CRI90-4000K)
	CRI	>90 (95 optional)
	CCT optional	2700K 3000K 4000K 4500K 6000K 6500K
	SDCM	3
	LM70/B50	60,000h
	Radiation Angle	120°
	Energy efficiency class	C
	Max length	5 meter(9% voltage drop)	10 meter(15% voltage drop)
Technical data	Dimension	8*10mm
	Shape	Flat
	Style	Top bend
	Minimum Bend DIameter	5.9in (150mm)
	Cuttable length	25mm	50mm
	Protection grade	IP65 (67 Optional)
	Permissible ambient temperature	-25 to +60°C
	Certification	RoHs(EN50581),CE-EMC(EN55015,EN61547,EN61000-3-2,61000-3-3),ERP(EN62722-1,EN62722-2-1)
	Warranty	5 years
Applications	1. Use as contour light such as signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift. 2. Silhouette lighting for jewelry showcase, shelf, cabinet 3. Products that with embedded light required.
